Larger diameter for improved exhaust efficiency and precision clearance design
|

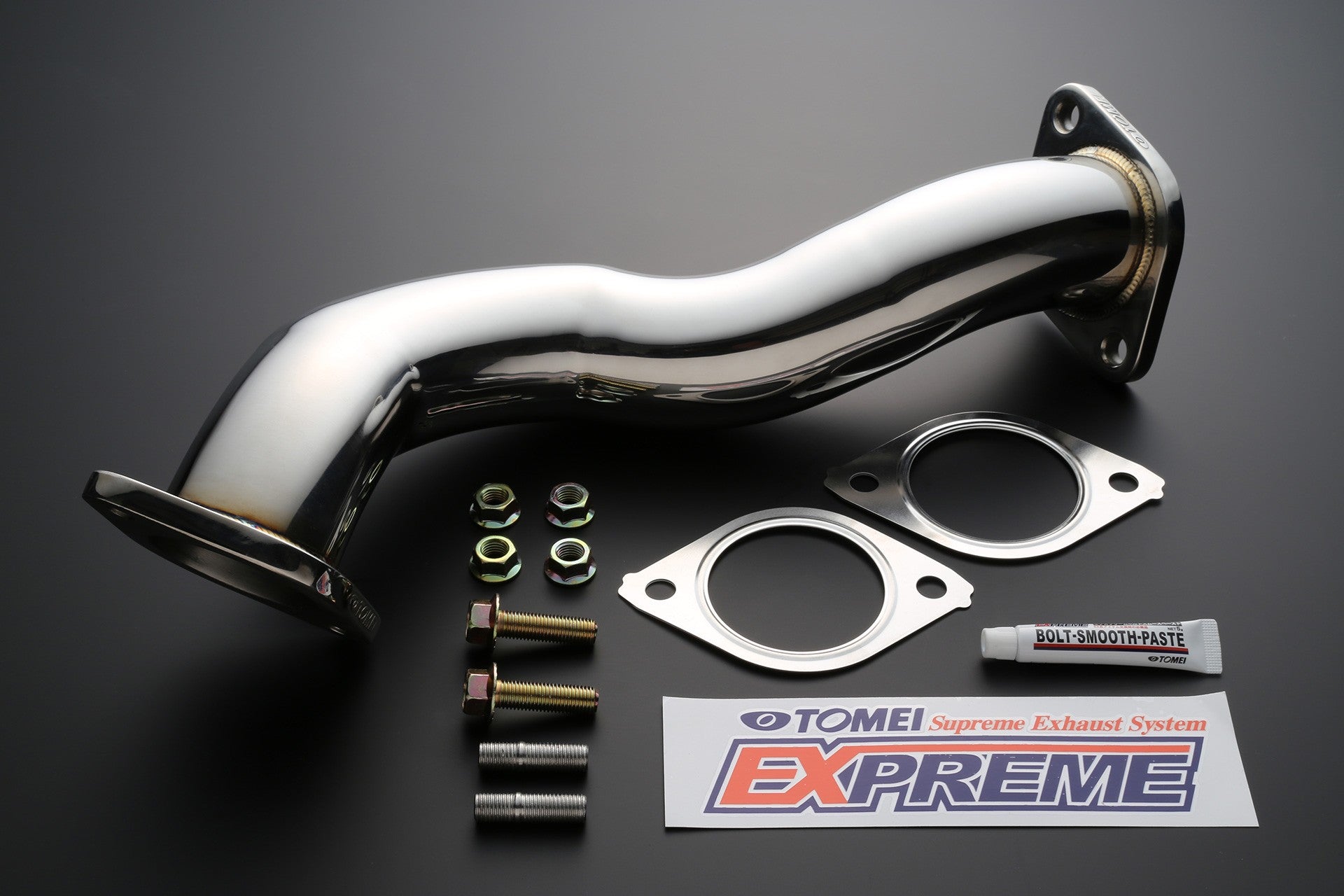

The stock joint pipe is not only narrow, it also has flattened sections which severely limits the performance gains from fitting a high efficiency manifold. However, our new pipe has its sections welded together to maintain a wide Φ60.5 diameter throughout with additional weld beads on the inside for rigidity. |
|
|
|
 |
JOINT PIPE (1) |
|
GASKET (2) |
|
FLANGE BOLT (1) |
|
|
STUD BOLT (2) |
|
FLANGE NUT (4) |
|
|
BOLT SMOOTH PASTE (1) |
|
|
|
|
APPLICATION |
PART NUMBER |
TOYOTA 86 |
P/N 431104 |
SCION FR-S |
SUBARU BRZ |
|
|
|
Designed for Competition Use only |
|
|
TEST RESULTS WHEN FITTED WITH A TOMEI EXHAUST MANIFOLD |
 |
|
|
SPECIFICATIONS COMPARISON VS STOCK |
|
|
|
EXHAUST MANIFOLD SIDE |
MUFFLER SIDE |
|
|
|
MATERIAL
|
PIPE DIAMETER (Φ)
|
PIPE THICKNESS (mm)
|
FLANGE THICKNESS (mm)
|
WEIGHT (kg / lbs)
|
STOCK
|
-
|
54.0
|
1.5 |
10.0 |
2.0 / 4.4 |
TOMEI
|
SUS304
|
60.5
|
1.5 |
11.0 |
1.5 / 3.3 |
|
|
|
OTHER FEATURES |
|
Even with the stock setup, handling around the joint pipe pass-through is challenging given the limited clearance. However, our dedicated engineers have achieved precision clearance even with the wider pipe. |
|
|
|
Other exhaust related parts released together for the 86/FR-S/BRZ |
|
|
