TOMEI EXPREME Ti TITANIUM CAT STRAIGHT PIPE for 86/BRZ

To truly enjoy the FA20 is to extract the most from it in NA form. So maximum weight reduction is an essential part of it. This product is specifically designed for competition use. With the absence of a catalytic converter, the pipes made from Titanium, this drastically reduces the overall weight to compliment the power gains.
When fitted to a car that has a forced induction setup, it greatly enhances the performance gains with the improved exhaust flow efficiency. This is one of the key products to extract the performance potential of the 86/BRZ/FR-S.

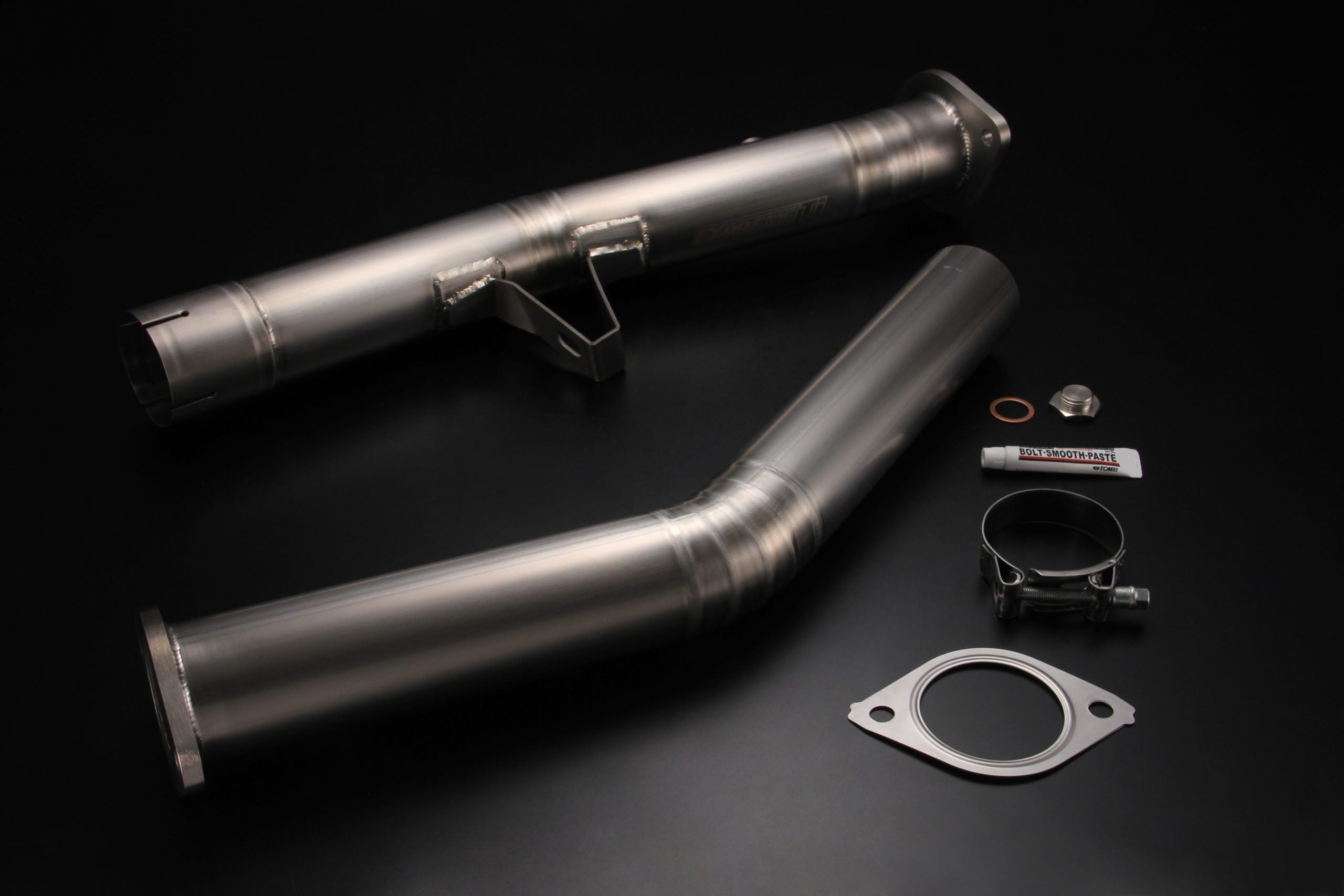

PRODUCT INFO

FEATURE / SPEC

• STRAIGHT MAIN PIPE F
• STRAIGHT MAIN PIPE R
• GASKET F
• CLAMP BAND
• A/F SENSOR PLUG
• COPPER WASHER

SPEC

	TOMEI	STD
MATERIAL	TITANIUM	IRON
PIPE DIAMETER	Φ60.5	Φ60.5
PIPE THICKNESS	1mm	1.5mm
FLANGE THICKNESS (F)	8.0mm	10.0mm.
FLANGE THICKNESS (R)	8.0mm	8.0mm
WEIGHT	1.4kg	5.5kg
	4.1kg DROP!

【FRONT SIDE】 Precision lightweight Titanium flange.		【REAR SIDE】 Utilizes the same round Φ60.5 diameter flange design as the std item.		【2 SECTION LAYOUT】 2 section pipe layout for ease of installation and a Mikalor damp band.
【BRACKET】 Lightweight Titanium is used. With a base plate to distributes stress.		【A/F SENSOR BOSS】 Comes equipped with an A/F sensor boss for convenience when tuning.
