With this vehicle-specific CANchecked MFA2.0 Gen2 data display for your Mazda MX5 NA you always have all relevant values in view

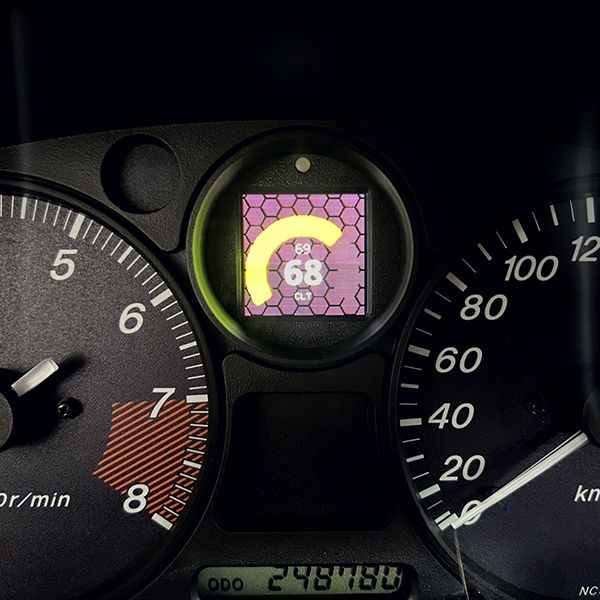

The MFA2.0 Gen2 is equipped with an OLED screen, which offers best readability even in direct sunlight. This kit is supplied with a vehicle-specific dash insert and a connection kit. It is operated using the rotary knob known from the Gen1.
Key Features
-
Perfect integration: The MFA2.0 Gen2 integrates OEM like to your dash
-
Faceplate-mounted LED: The LED on the front of the display can be used as a shift light and/or as a warning LED
-
Can Bus: Support of CAN Bus ECUs, own CAN streams and from 2008 on OBD2 and deep values for VAG cars
-
WiFi: Connect to your smartphone or PC and configure it using our Web App
-
Additional inputs: Connect up to 6 analog sensors or connect an ethanol sensor* directly to the display
-
Preset Alarms: Predefined alarms can be easily activated and customized. For example, get a big alert when the exhaust gas temperature is above 900 degrees
-
Customization: Use your own startup logo and color scheme to make it your MFA2.0 Gen2
-
Online logging*: Log your data with your smartphone or PC and save the log for later analysis
-
Flex Fuel*: View ethanol content and temperature on your display
-
CAN Switching*: Switch CAN switches using the buttons or rotary knob and forward analog input readings to the CAN bus
Different views
Choose up to eight pages of different views and customize your display to best suit you and your vehicle:
- Analog pointer
- Double value
- Gear indicator
- 4-fold values
- 6-fold values
- Bar + double display
- Round display
- Bar graph (double across)
- Performance Meter
- Bar chart (1–6-fold upright)
- Single value
Configuration using Online Display Setup Software – oDSS
Brand new with our MFA2.0 Gen2 is access to the device via WiFi. You can set up the display via smartphone or PC.
With the oDSS you can fully configure your display, log values (license required), upload your own startup image and update the display firmware.
Supported values
A popular customer question is: Which values can I request from my ECU? The answer: ALL – your MFA2.0 Gen2 is compatible with ISO 11898-2 and SAE J2284.
The ECU manufacturers determine which values are sent via the CAN bus interface. Documentation is important, possibly in the form of a DBC file that can be imported via our DSS. Depending on the manufacturer, up to 64 sensors can be queried.
OBD2 queries via CAN Bus (11bit/29bit) are implemented. Vehicle-specific protocols like UDS or TP2 are also available.
Included by default:
- OBD2 – 11 and 29bit
- Ecumaster – Classic and Black
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 and 3
If the desired ECU is not listed, you can download or request the appropriate TRI/TRX from our database.
For all VAG cars from model year 2008 (in some cases also older), we offer in-depth protocol-based data queries such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate actuation and more.
Integrated LED
The internal LED can be used as a shift light or a warning LED.
As a shift light, you can assign up to 8 different colors and RPM limits, including the RPM at which the shift light starts flashing.
As a warning LED, you can define minimum and maximum values per sensor. If exceeded or undershot, the LED flashes in the configured color and the shift light function is disabled during the warning.
Scope of delivery and extensions

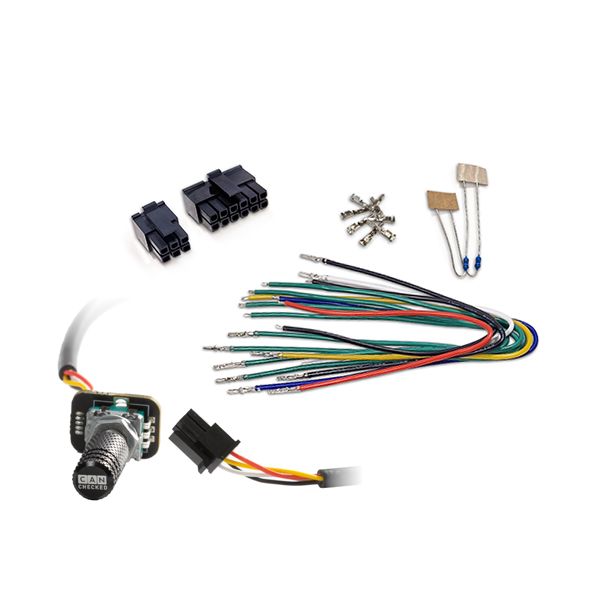

Included with every delivery:
- MFA2.0 Gen2 data display integrated in a bezel to fit your OEM dash
- Quickstart Guide
- Connector B (6-way Molex)
- Connector C (12-way Molex)
- Pre-assembled colored connection cables (20 cm; power supply, CAN bus, analog inputs, 5V, sensor ground)
- Pins to crimp yourself
- Two 1K resistors (pull-up for NTC sensors)
Any sensors can be connected via the six analog inputs – linear 0–5V and NTC sensors are supported. CANchecked sensor characteristic curves are preloaded and work plug & play:
- AIN1: Temperature sensor (NTC01)
- AIN2: Transducer for exhaust gas temperature probe type K (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)
- AIN5: Not preconfigured
- AIN6: Not preconfigured
For the connection you can use our pre-assembled 4-way AIN harness.
With the appropriate license*, an ethanol sensor can be connected directly to the display via a separate pin.
Optional accessories
- CC22100 CBD08 – eight-way CAN Distribution Hub
- CC22780 ANC04 – four-way AIN harness
- CC22902 NTC01 – temperature sensor for liquids 1/8" NPT
- CC22903 TCC01 – type K transducer 0–1250°C
- CC22901 FLP01 – Pressure sensor 0–10 bar (145psi) M10x1
- CC22900 BST10 – Pressure sensor 6.5 bar relativ (95psi)
Additional licenses
Live Logging: With the Live Logging license, sensor data can be logged into the oDSS and downloaded to your smartphone or PC.
All sensors are logged (for OBD and UDS only the currently displayed ones). You can select which sensors are shown graphically.
Flex Fuel ethanol sensor: With the ethanol license, connect the sensor directly to the display using a 10K pull-up resistor. Ethanol content and fuel temperature can be displayed and logged.
CAN Switching and AIN forwarding: With this license you can switch CAN functions using the buttons or rotary knob and forward analog input voltages to the CAN bus.
*additional licenses required
